| ltems | Standard | |
| Operating temperature range | ﹣10℃~+80℃. | |
|
Electrical performance |
Rating | 0.3A.6V DC |
| Insulation resistance | ＞100MΩ | |
| Dielectric strength | 250V 50HZ 1min | |
| Contact resistance | ≤50mΩ | |
| Durability | Lifetime | 5,000 Cycles |
|
Mechanical performance |
Operating force | 200±80gf |

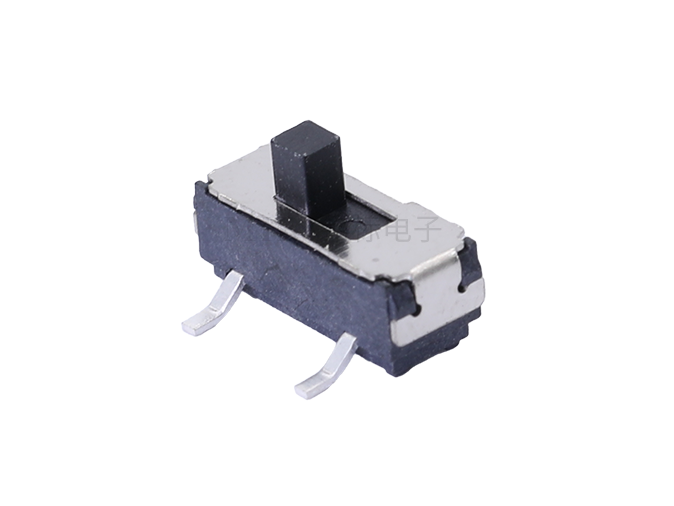

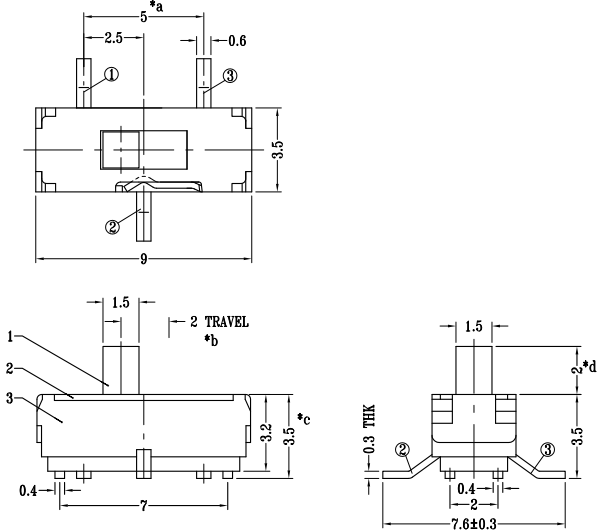

| Proudcts | Dimensions | Circuit Diagram |

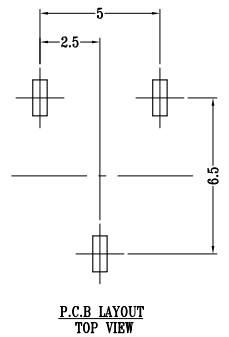

| Pad Layout | ||
 |
 |
 |
