| ltems | Standard | |
| Operating temperature range | -10℃ to +60℃ | |
|
Electrical performance |
Rating | 10mA 5V DC. |
| Insulation resistance | 100MΩ min.100V DC | |
| Dielectric strength | 100V AC for 1 min. | |
| Contact resistance | 300mΩ max. | |
| Durability | Lifetime | 50,000 Cycles |
|
Mechanical performance |
Operating force |
Push portion:300±50gf
Lever position:80±50gf
|
| Travel | 0.8±0.2mm | |

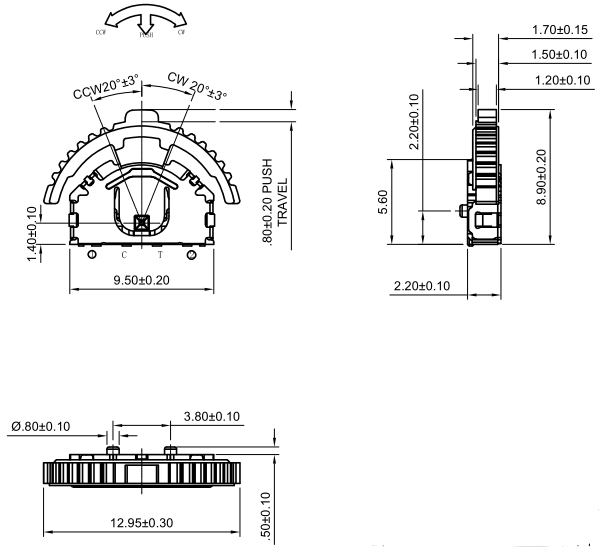

| Proudcts | Dimensions | Circuit Diagram |

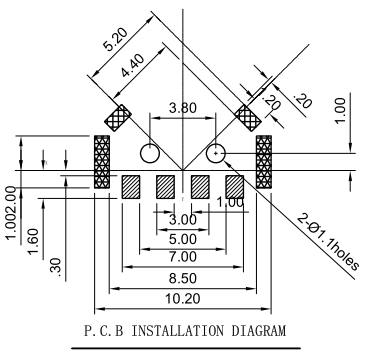

| Pad Layout | ||
 |
 |
 |
