歡迎訪問東莞市銘標電子科技有限公司官方網站!

銘標科技

Mingbiao Electronic

輕觸按鍵開關源頭廠家

國家高新技術企業,研發、生產制造一站式服務!

朱小姐:153-2286-1894
曾先生:189-2827-6086

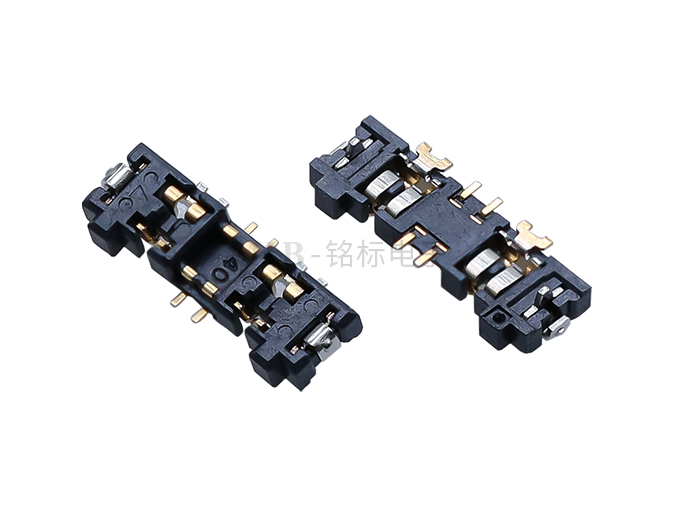

MIB-013M004   6.41*2.12*0.8mm

MIB-013M004 6.41*2.12*0.8mm

品牌:銘標科技
型號:MIB-013M004
規格:6.41*2.12*0.8mm
包裝:10000pcs
毛邊最大0.03mm,厚0.05mm;端子接地片共面度在0.05mm以內,正位度0.02mm以內;
* 聲明:有關于產品的規格、參數、壽命、工作溫度、手感、防水等級等數據,只代表銘標電子內部的測試結果,如需詳細測試方式,請聯系銘標業務人員。
詳細參數

SPECIFICATONS:

1. Plastic material: LCP UL 94V-0 BLACK;
2. 0.03mm thick, 0.05mm thick;
3. The product should not have obvious shrinkage, burning, white, rubber, terminal glue and other problems;
4. Parts must meet RoHS requirements;
5. ▼ symbol QIP control size;
6. Die number (A, B, C...... );
7. 10 KPCS / disk;
8. No geometric center position of the product;
9. The joint level of terminal ground plate within 0.05mm, positive degree within 0.02mm;
10. Fine glue inlet at the bottom;

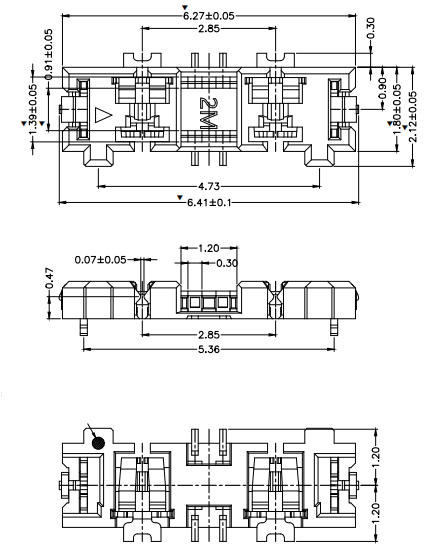

尺寸圖
Proudcts Dimensions Circuit  Diagram

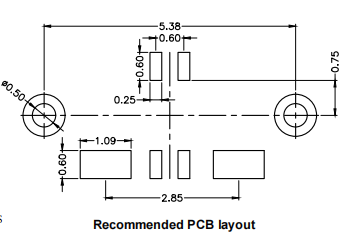

Pad  Layout
