| ltems | Standard | |
| Ambient Temper. Used | -25℃ to +125℃ | |
|
Electrical performance |
Rating | 5A 125/250VAC |
| Insulation resistance | 100MΩ min.DC500V | |
| Withstand Voltage | AC1500V 1min. | |
| Contact resistance | 100mΩ max. | |
|
Mechanical performance |
Operating force | 40±25gf MAX |
| Durability | Electrical Life | 10,000 Cycles |
| Mechanical Life | 1,000,000 Cycles | |

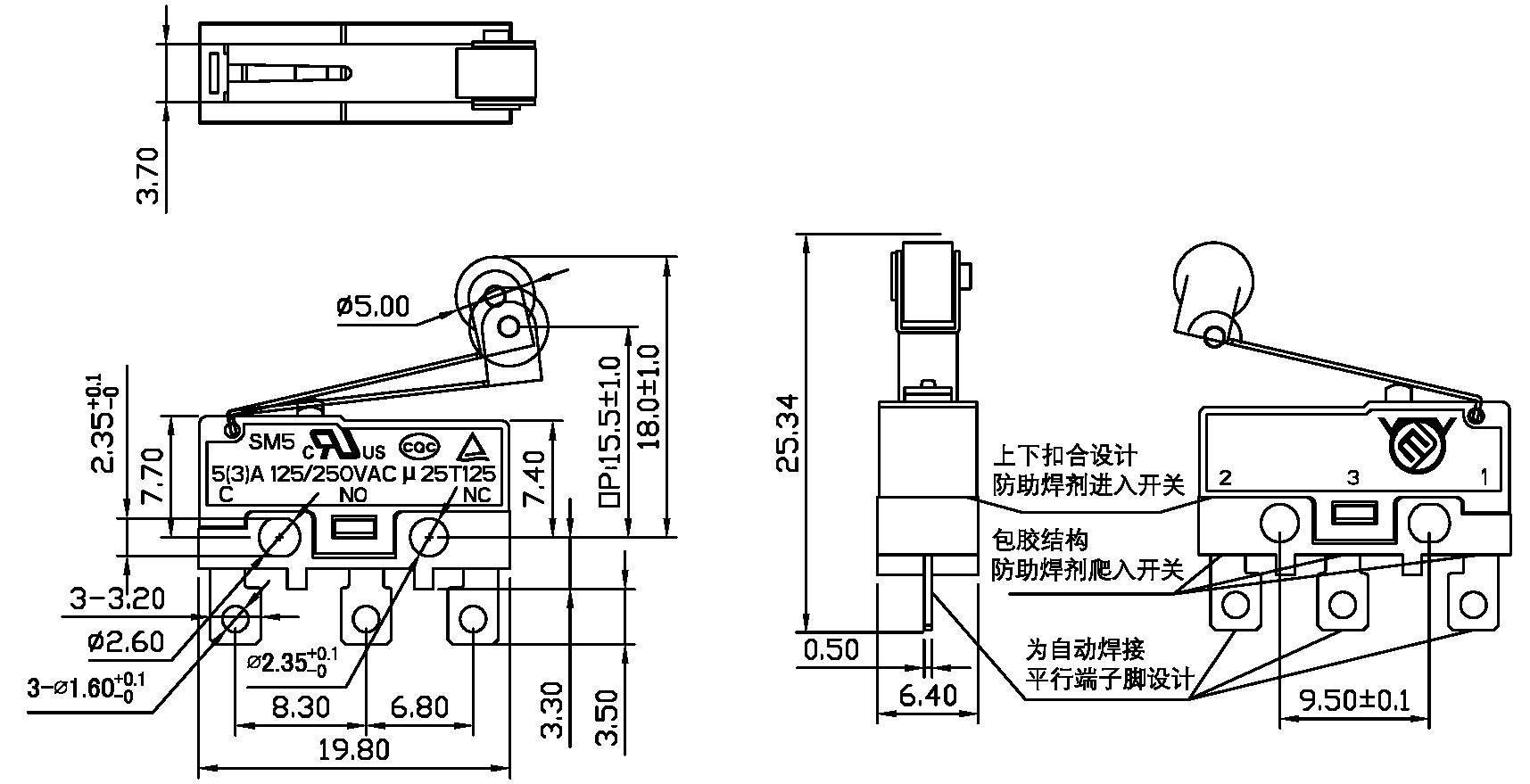

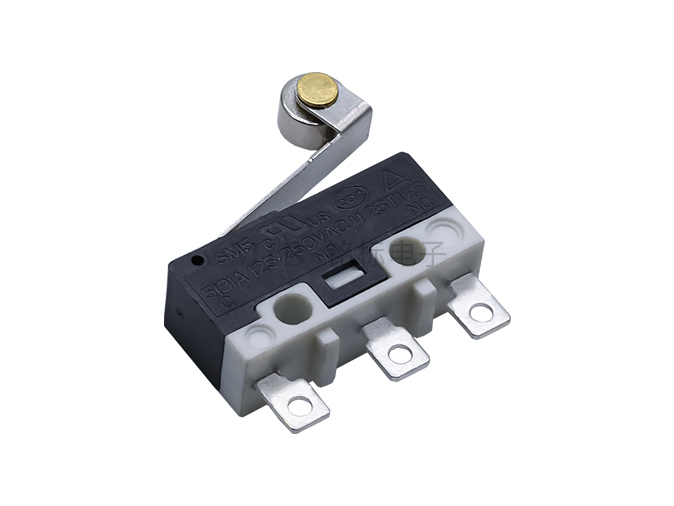

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
