| ltems | Standard | |
| Operating temperature range | -40℃ to +160℃ | |
|
Electrical performance |
Rating | 50mA.,24V DC |
| Insulation resistance | 10MΩ min.100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 50mΩ max. | |
| Durability | Lifetime | 1000,000Cycles |
|
Mechanical performance |
Operating force | 300+80/-40gf |
| Travel | 1.0±0.2mm | |

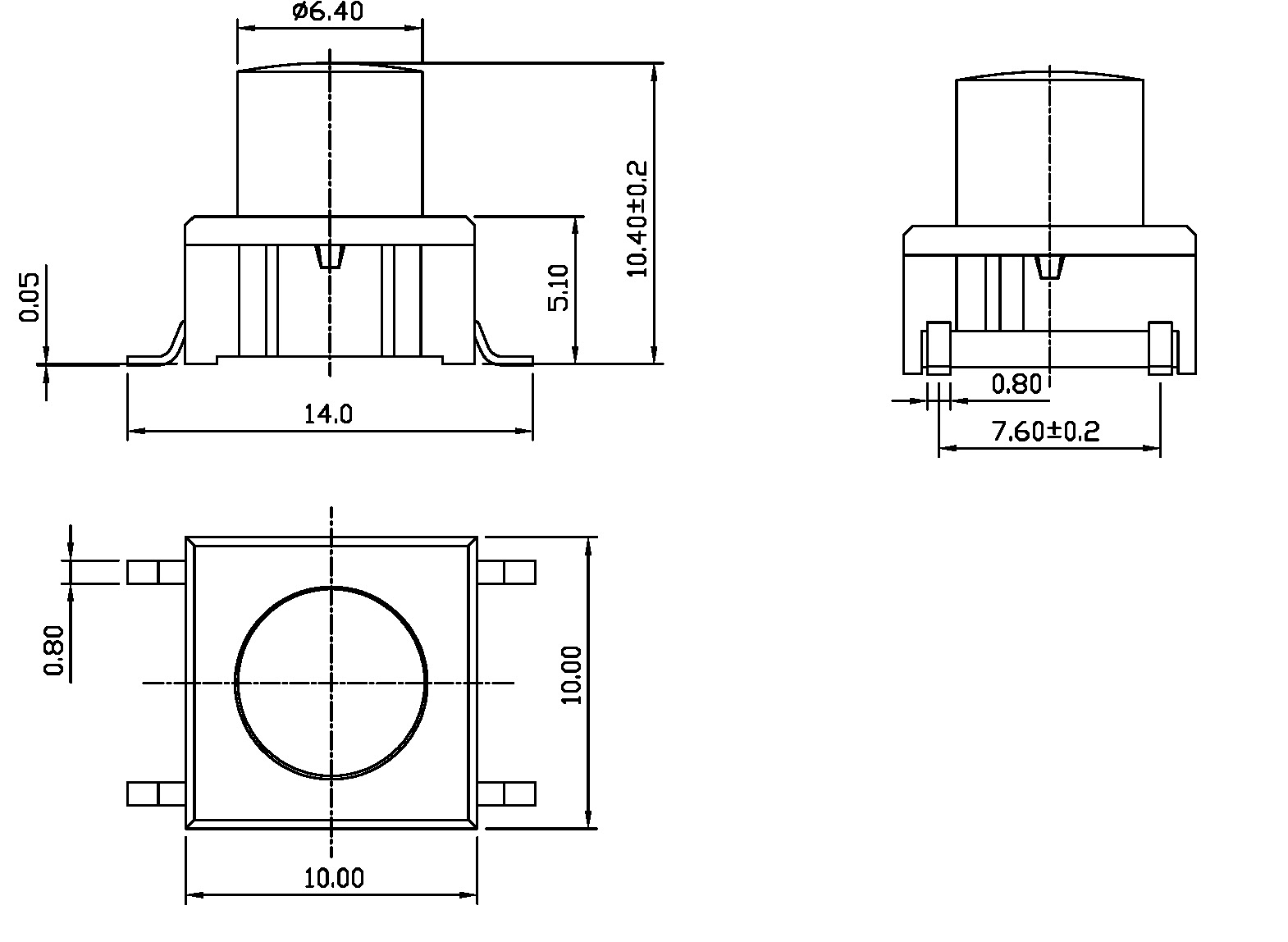

| Proudcts | Dimensions | Circuit Diagram |

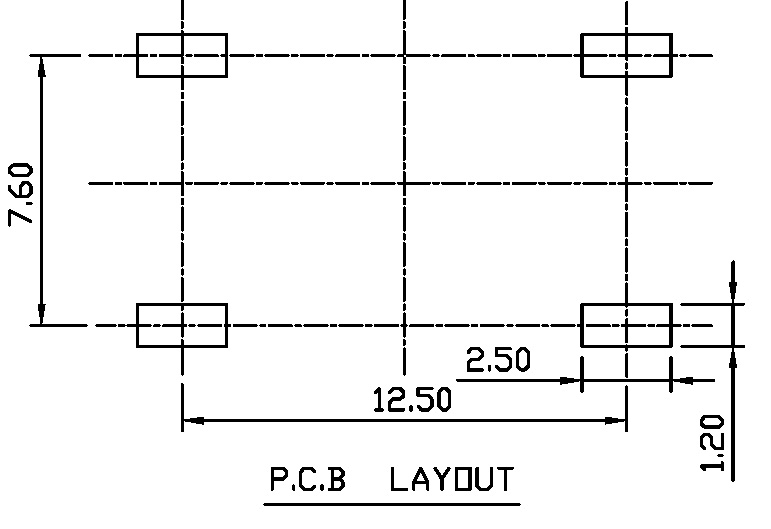

| Pad Layout | ||
 |
 |
 |
